You look for:

•





  A low-cost, easily installed and supported, multi-point, remotely-reporting air temperature/humidity/DC power consumption measurement system.

We offer:

• 3 different kinds of sensors:

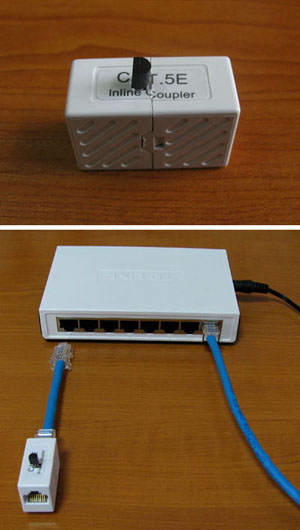

  - temperature only (Maxim DS18S20)

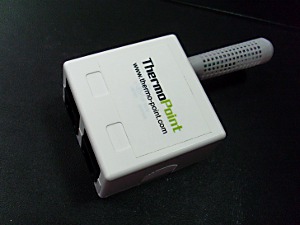

  - temperature + relative air humidity (Sensirion SHT11)

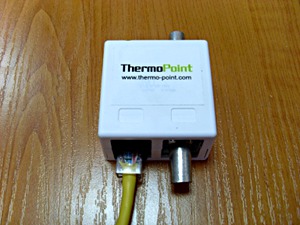

  - DC current/power consumption meter (Allegro ACS756)
• 9-bit (DS18S20) or 14-bit (SHT11) temperature sensing accuracy
• 12-bit humidity sensing accuracy (SHT11)
• 10-bit DC current sensing accuracy (ACS756)
• DS18S20 has operating temperature range of -55°C to +125°C and precision of 0.5°C in range of -10°C to +85°C
• SHT11 has operating temperature range of -40°C to +125°C and precision of 0.02°C in range of -10°C to +85°C
• SHT11 senses air humidity (rH%) with precision of 0.05% and linear response in range of +10°C to +50°C
• ACS756 senses DC current with precision of 1% up to 200A
• 7-channel Temperature/Humidity Sensor Hub
• 8-channel DC Current Sensor Hub
• Up to 30 DS18S20 sensors per channel, up to 100 meters total channel length
• Up to 16 SHT11 sensors per channel, up to 1000 meters total channel length
• One ACS756 sensor per channel, up to 300 meters cable length
• Each sensor has its own unique 64-bit address and is managed separately
• Compact system, uses ordinary straight UTP cable to the sensors, sensors powered by the hub
• The hub links to a PC via RS232, RS485 or Ethernet
• The software is easy for automation, runs under Windows (ActivePerl installation needed), Linux and MacOS, and is free
• The software allows automatic data refresh in customizeable intervals
• Option for connecting to BMS/SCADA
• Option for connecting to an alarm system
• Option for gathering the data into a database
• Option for graphical visualisation from а database
